Formwork Systems

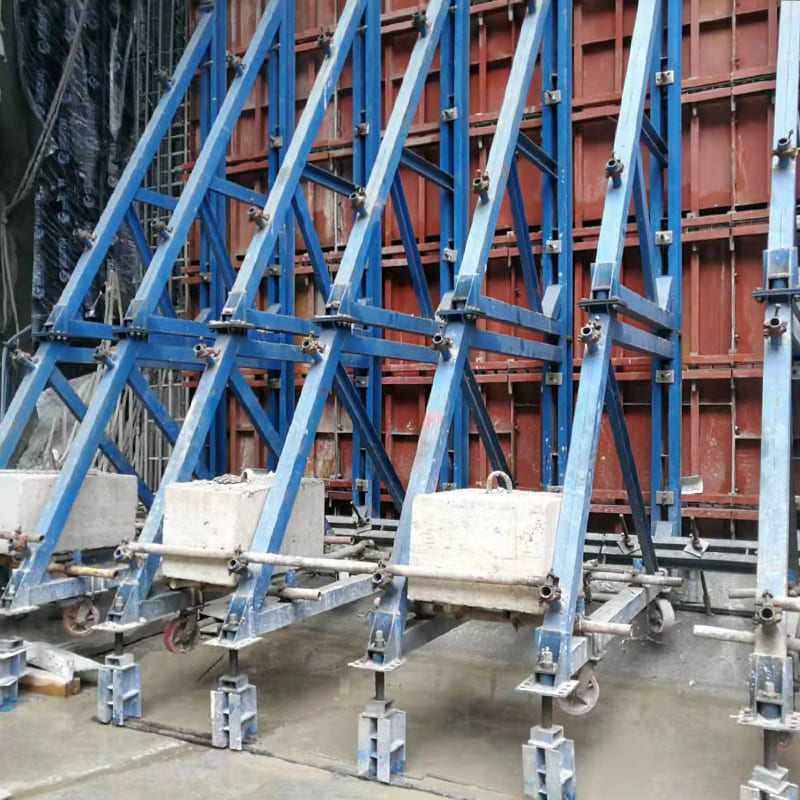

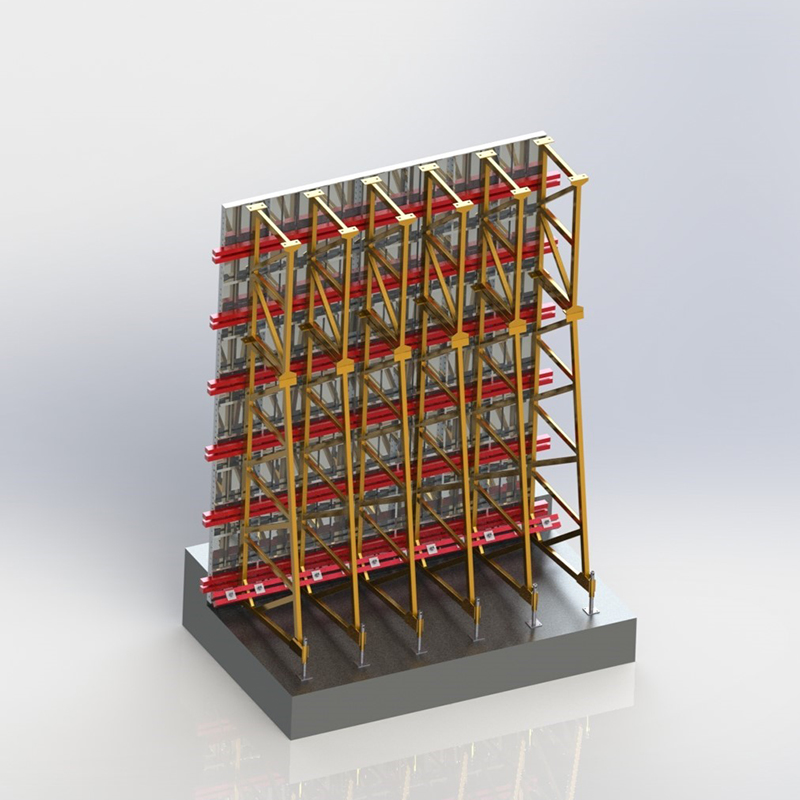

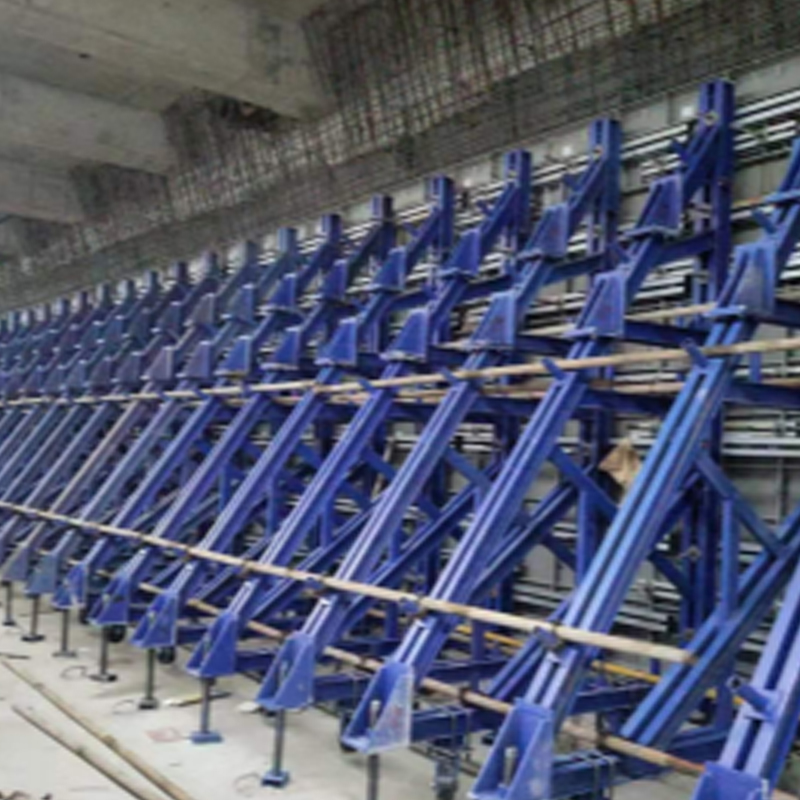

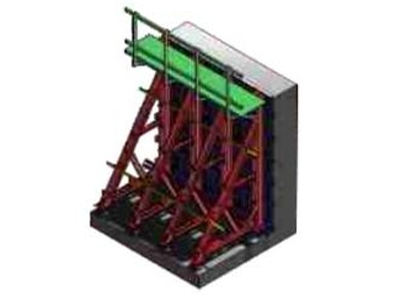

Heavyweight Triangular Truss Type Single-Side Wall Framework

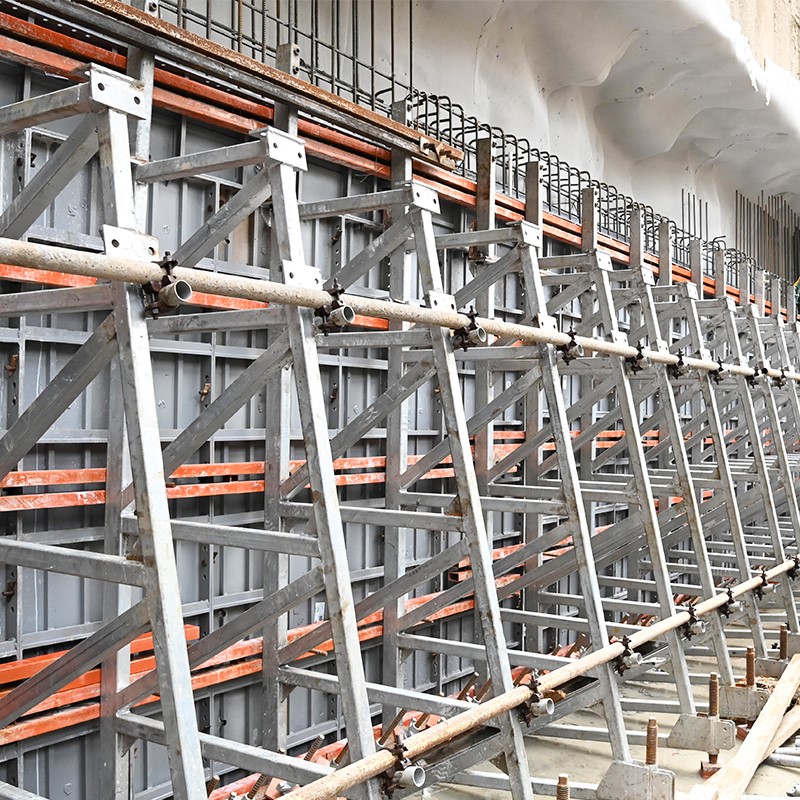

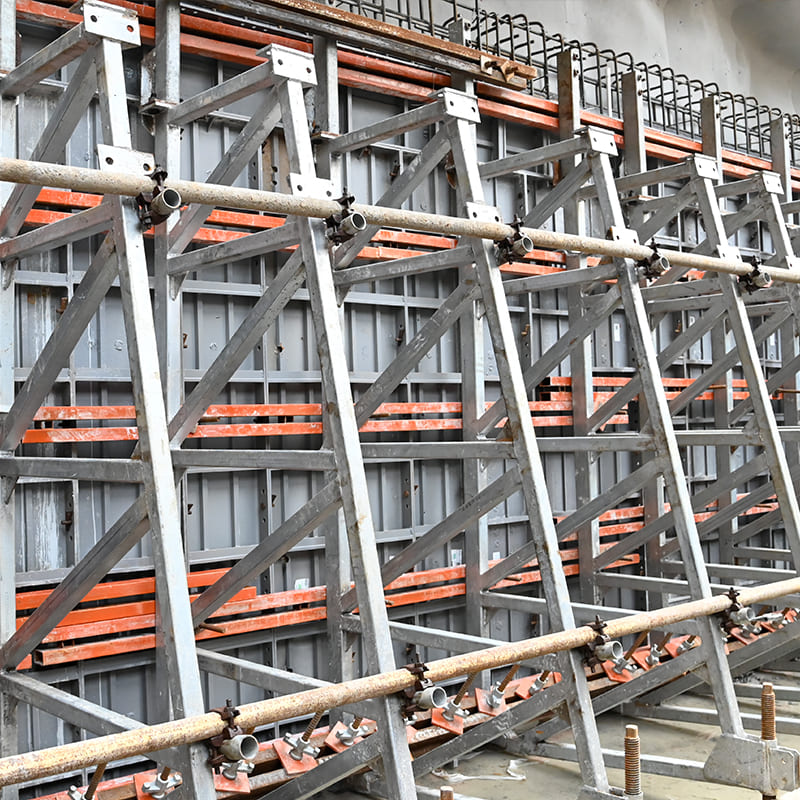

Lightweight Triangular Truss Type Single-Side Wall Framework

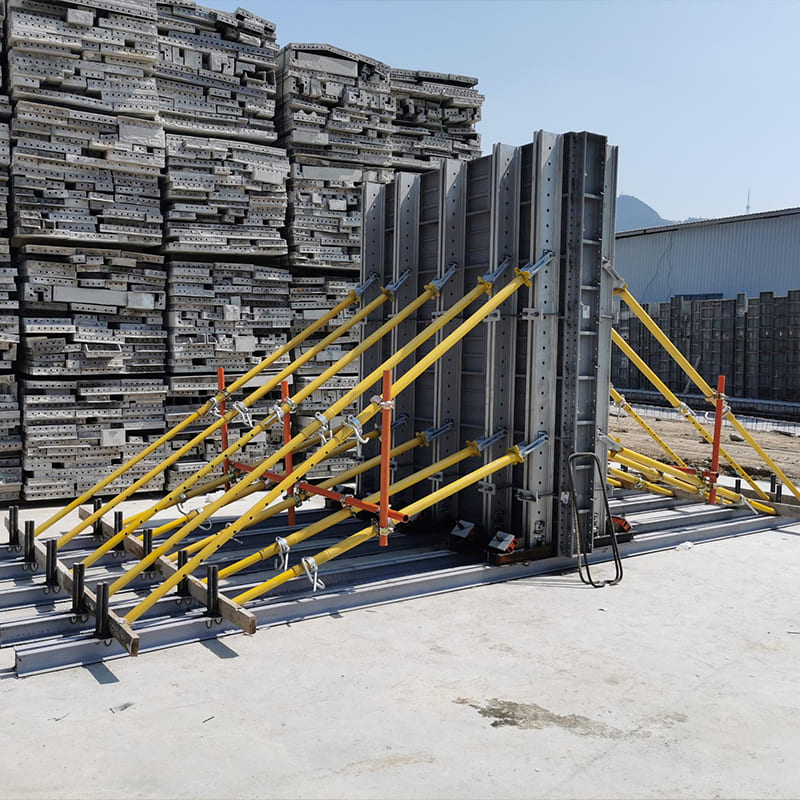

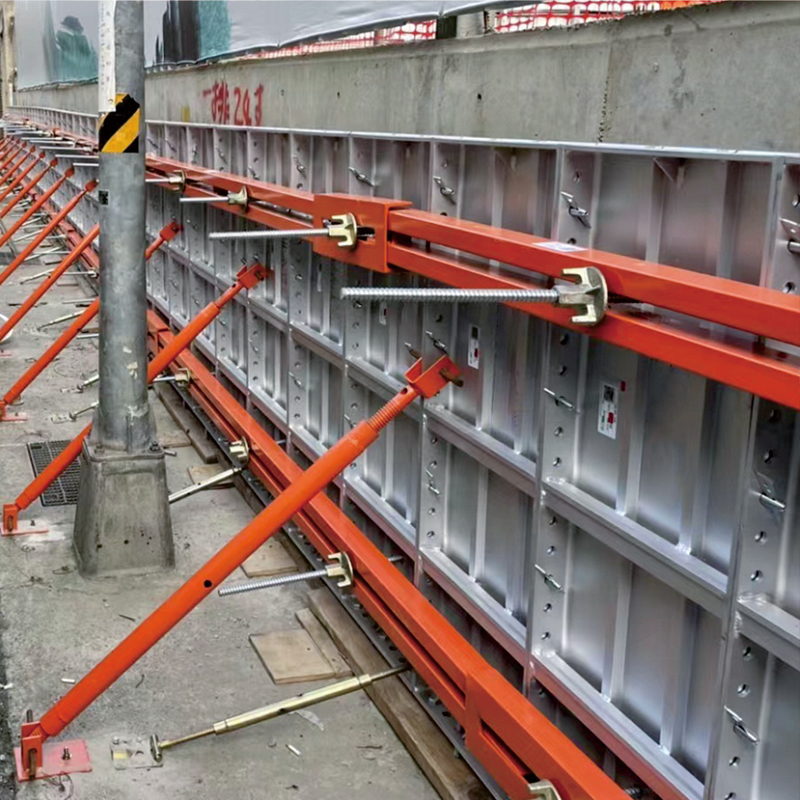

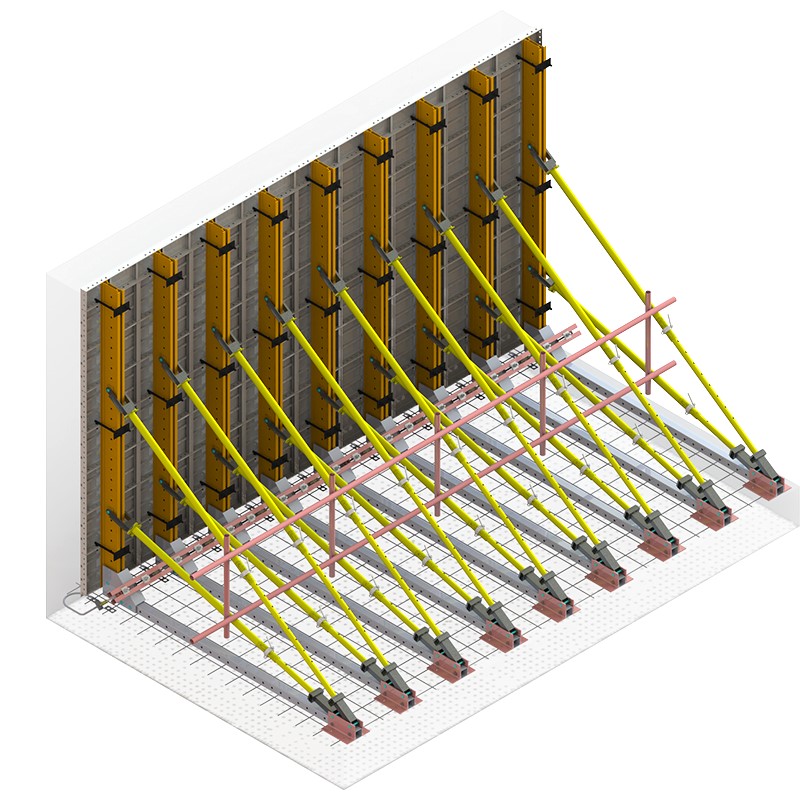

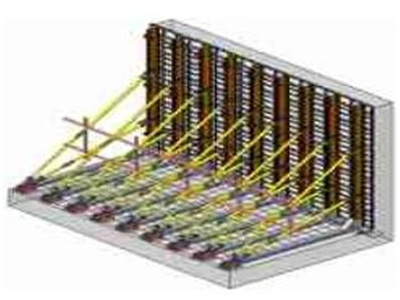

Aluminium Beam Type Single-Side Wall Framework
Specifcation
| Aluminium Beam Type Single-Side Wall Framework | Triangular Truss Type Single-Side Wall Framework | |
| Framework Pattern |  |
 |
| Applicable Single-Side Wall Height | 3.0m and below | 3.0m-7.5m |
| Layout Spacing | 600mm | 800mm |
| Weight of Aluminium Components | 16.92kg | |
| Weight of Steel Components | 106.15kg | 208.37kg |
| Waler in Need | No | Yes |
| Total Weight of the Framework | 125.35kg | 208.37kg |
| Advantages | ①The framework has lighter weight.Its weight is only 60%of the weight of the triangular truss single-side famework, which can be manually moved or lifted; ②High reuse rate of material,with part of the product materials can be turned over to other construction sites for use; ③Lower material cost; ④Aluminium components has higher scrap values; ⑤Less labor works and safer operation; ⑥Compliant with environmental-friendly building requirements. |
①Overall framework is strong,with majority of the components welded in a factory; ②Less works for installation and dismantlement,contributing to higher working efficiency on site; ③Stable frame structure with better mechanical performance. |
Precautions for Single-Side Wall Framework Casting
- Control the casting speed to prevent bulging.
- It is suggested to cast by sections with leveraging, as to fix the framework position and improve the casting quality finished concrete casting product.
- It is suggested to cast by layers, as to assist the elimination of gas in concrete and reduce the occurrence of honeycomb phenomena on the concrete surface.

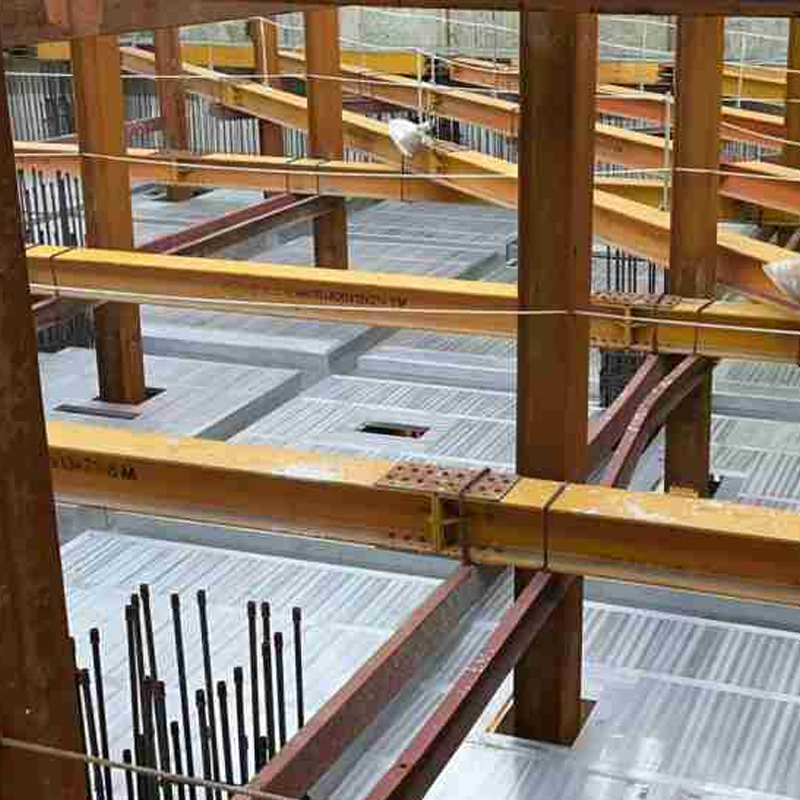

Installation

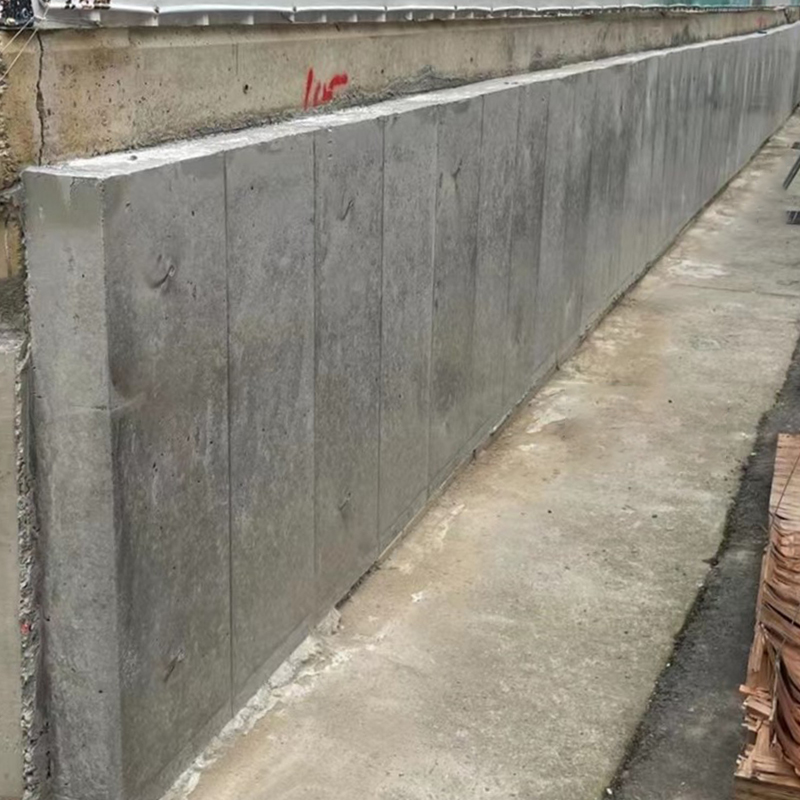

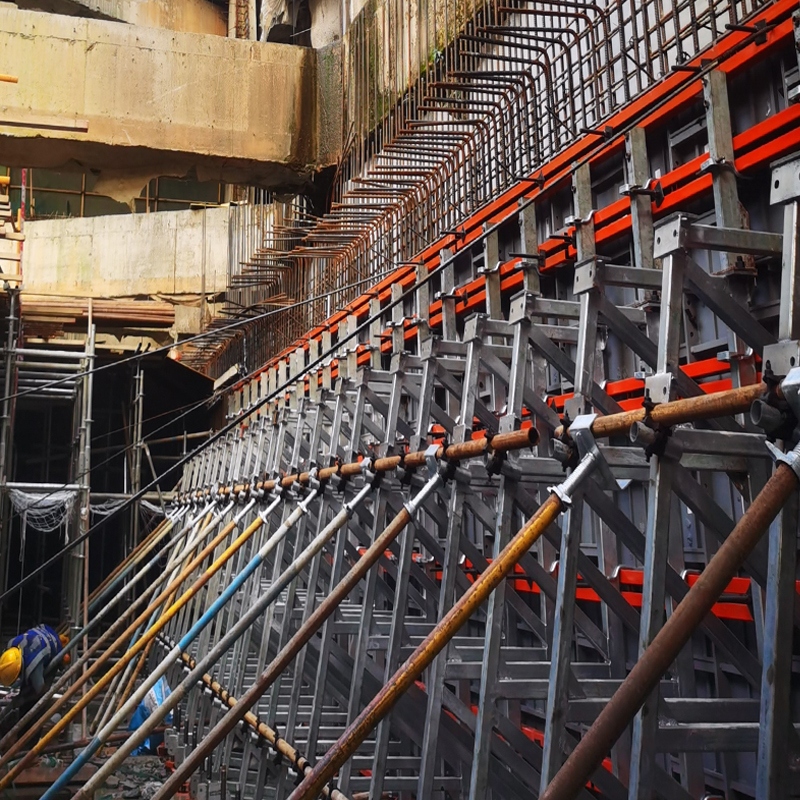

Casting Effect
FAQ
A Single Side Wall Framework is a specialized formwork system designed for constructing concrete walls where formwork can only be installed on one side due to site constraints. It provides stable support during concrete pouring and ensures accurate wall alignment, surface quality, and structural integrity.
Single Side Wall Framework offers several advantages, including high structural stability, efficient installation, excellent concrete finishing quality, and adaptability to complex construction environments. It reduces the need for traditional support methods and improves construction efficiency.
Single Side Wall Framework is suitable for residential, commercial, and infrastructure construction projects, including basements, underground parking structures, subway projects, water conservancy facilities, retaining structures, and other concrete wall applications.
The modular design allows faster assembly, installation, and removal compared with conventional construction methods. It helps reduce labor requirements, shorten construction cycles, and improve overall project productivity.
GETO provides integrated formwork solutions with professional design capabilities, advanced manufacturing technology, and extensive experience in construction projects. The Single Side Wall Framework system is developed to deliver reliable performance, construction efficiency, and high-quality concrete results.
